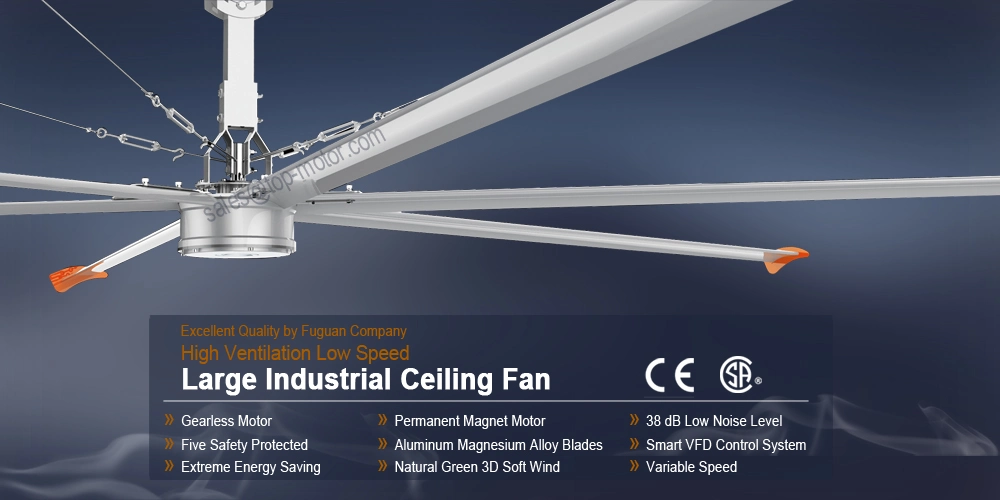

High Ventilation Low Speed
Large Industrial Ceiling Fans
with Permanent Magnet Motor
BRIEF INTRODUCTION
»» Rated power from 0.37kW to 1.5kW, 5-6 pieces of aluminum alloy blades can
drive a mass of air to ventilate and cool in area up to 1500 sq. meters.
»» HVLS industrial ceiling fan is a kind of super fan which has high ventilation and low speed.
It with huge diameter range from 3m to 7.3m (10FT to 24FT)
»» Using self-designed frequency control, high efficiency and energy saving permanent magnet
external motor drive. Super mute, small volume, light weight, compact structure and beautiful
appearance.
»» Compare to traditional ventilation products, hvls fan has the advantages of evergy saving,
eco-friendly, huge area coverage, comfortable feeling, etc..
»» Widely used in: plant, public places, commercial area, supermarket, train station, warehouse,
factory, workshop, animal husbandry, etc
TECHNICAL DATA
WORKING PRINCIPLE
INSTALLATION DATA
PACKING
CERTIFICATIONS
COMPANY INFORMATION
PAYMENT
TRANSPORT
FAQ (Q= Question, A= Answer)
Q1: How can I get some sample?
A1: Samples are available, the buyer is expected to cover the sample costs and freight.
Q2: Can you make my brand on products?
A2: Yes.We supply OEM & ODM service.We are the OEM/ODM supplier for some famous companies
Q3: What's your minimum quantity for order (MOQ)?
A3: 1PCS
Q4: How about the delivery time?
A4: It depends on the order quantity.It usually samples can be deliveried within 5~15 days.
The batch order can be shipped within 30 after receiving original L/C or TT deposit.
Q5: What is your terms of payment ?
A5: Payment≤1000USD, 100% in advance.Payment≥1000USD, 30% T/T in advance , balance before shippment.LC is acceptable.
Q6: How about the warranty?
A6: Permenant magnet motor warranty period of 5 years; controller warranty period of 18 months.
Q7: Can I buy different products in one container?
A7: Yes, you can mix different models of ceiling fans in the container.
Q8: Do you have any certifications?
A8: Yes, CE & ISO9001 can be provided, also we can provide COC certification for Customes Clearance.
Q9: What's your company's main products?
A9: Our company is specialized in HVLS Large Industrial Ceiling Fans, Electric Motors, water pumps, and so on.
Large Industrial Ceiling Fans
with Permanent Magnet Motor
BRIEF INTRODUCTION
»» Rated power from 0.37kW to 1.5kW, 5-6 pieces of aluminum alloy blades can
drive a mass of air to ventilate and cool in area up to 1500 sq. meters.
»» HVLS industrial ceiling fan is a kind of super fan which has high ventilation and low speed.
It with huge diameter range from 3m to 7.3m (10FT to 24FT)
»» Using self-designed frequency control, high efficiency and energy saving permanent magnet
external motor drive. Super mute, small volume, light weight, compact structure and beautiful
appearance.
»» Compare to traditional ventilation products, hvls fan has the advantages of evergy saving,
eco-friendly, huge area coverage, comfortable feeling, etc..
»» Widely used in: plant, public places, commercial area, supermarket, train station, warehouse,
factory, workshop, animal husbandry, etc
TECHNICAL DATA
Model | Size | Diameter | Power | Voltage | Air Volume | Effective Area | Coverage Area | Rotating Speed | Nos. of Blades | Level of Noise |
FGCF-3 | 10' | 3 m | 0.37 kW | 220/380 V | 4000 m³/min | 100 m² | 250 m² | 0-120 rpm | 5 PCS | 38 dB |
FGCF-4 | 13' | 4 m | 0.55 kW | 220/380 V | 7000 m³/min | 256 m² | 450 m² | 0-100 rpm | 5 PCS | 38 dB |
FGCF-5 | 16' | 5 m | 0.75 kW | 220/380 V | 10000 m³/min | 400 m² | 700 m² | 0-80 rpm | 5 PCS | 38 dB |
FGCF-5.5 | 18' | 5.5 m | 1.1 kW | 220/380 V | 11000 m³/min | 500 m² | 900 m² | 0-75 rpm | 6 PCS | 38 dB |
FGCF-6.3 | 20' | 6.3 m | 1.1 kW | 220/380 V | 11500 m³/min | 600 m² | 1000 m² | 0-65 rpm | 6 PCS | 38 dB |
FGCF-7.3 | 24' | 7.3 m | 1.1 kW | 220/380 V | 13000 m³/min | 850 m² | 1500 m² | 0-50 rpm | 6 PCS | 38 dB |
WORKING PRINCIPLE
INSTALLATION DATA
Model | H | H1 | H2 | H3 | H4 | Link | H5 |
FGCF-3 | 2.5-5 | 0.15m | ≥0.3m | ≥0.3m | ≥0.3m | 0.6-1.5m | ≥0.2m |
FGCF-4 | 2.5-5 | 0.15m | ≥0.3m | ≥0.5m | ≥0.3m | 0.6-1.5m | ≥0.2m |
FGCF-5 | 3.6-6 | 0.15m | ≥0.3m | ≥0.6m | ≥0.3m | 0.6-2m | ≥0.2m |
FGCF-5.5 | 5-12 | 0.2m | ≥0.3m | ≥0.8m | ≥0.3m | 0.6-5m | ≥0.2m |
FGCF-6.3 | 4.2-9 | 0.2m | ≥0.3m | ≥0.8m | ≥0.3m | 0.6-5m | ≥0.2m |
FGCF-7.3 | 4.2-9 | 0.2m | ≥0.3m | ≥0.8m | ≥0.3m | 0.6-5m | ≥0.2m |
PACKING
CERTIFICATIONS

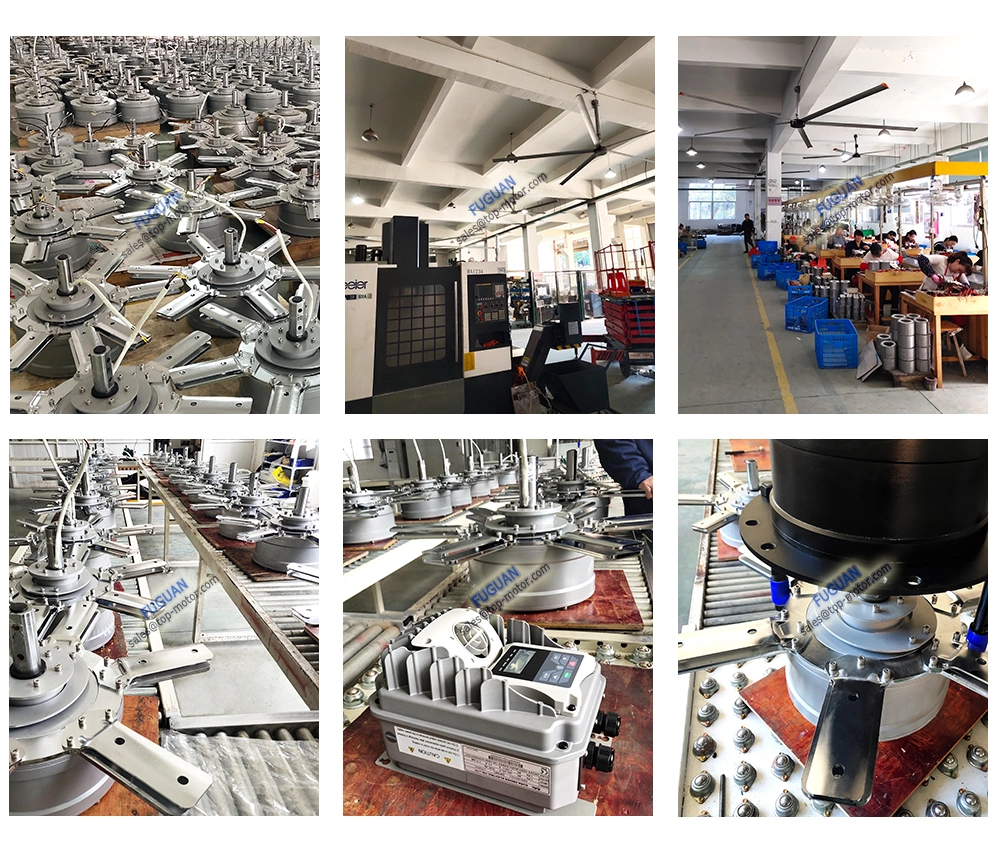

COMPANY INFORMATION
PAYMENT
TRANSPORT
FAQ (Q= Question, A= Answer)
Q1: How can I get some sample?
A1: Samples are available, the buyer is expected to cover the sample costs and freight.
Q2: Can you make my brand on products?
A2: Yes.We supply OEM & ODM service.We are the OEM/ODM supplier for some famous companies
Q3: What's your minimum quantity for order (MOQ)?
A3: 1PCS
Q4: How about the delivery time?
A4: It depends on the order quantity.It usually samples can be deliveried within 5~15 days.
The batch order can be shipped within 30 after receiving original L/C or TT deposit.
Q5: What is your terms of payment ?
A5: Payment≤1000USD, 100% in advance.Payment≥1000USD, 30% T/T in advance , balance before shippment.LC is acceptable.
Q6: How about the warranty?
A6: Permenant magnet motor warranty period of 5 years; controller warranty period of 18 months.
Q7: Can I buy different products in one container?
A7: Yes, you can mix different models of ceiling fans in the container.
Q8: Do you have any certifications?
A8: Yes, CE & ISO9001 can be provided, also we can provide COC certification for Customes Clearance.
Q9: What's your company's main products?
A9: Our company is specialized in HVLS Large Industrial Ceiling Fans, Electric Motors, water pumps, and so on.
