Product introduction:
The CBB61 AC motor capacitor with a heavy-edge metallized Al/Zn film as the electrode and medium. A flame retardant epoxy resin is then placed in the ABS or PBT cube plastic housing.

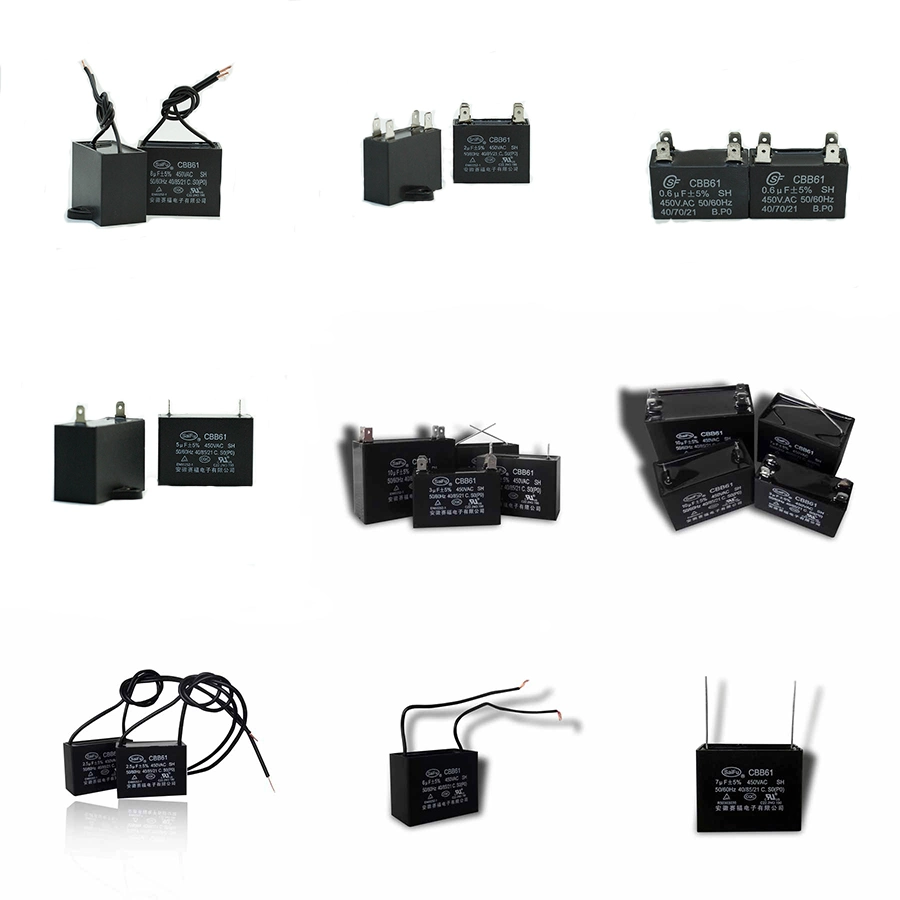

The CBB61 series can be divided into fan capacitors, Insert capacitors, lead capacitors and pin capacitors depending on the form of the leads.
Application:
It is widely used in air conditioner fans, electric fans, exhaust fans and other single-phase motors with a relatively low frequency of 50Hz/60Hz AC power supply.
Specifications
Dimensions(mm)
Note:Other specifications,size,terminal outside table and price are negotiable.
About us
1.Leading technology: Our quality management system has passed ISO9001 certification. Our products have CQC, TUV, UL, VDE and other performance certifications.
2.Sophisticated equipment, advanced: the company has 3 high-vacuum coating machines, 13 slitting machines, 6 gold gun winding machines and other automation equipment.
3.With a large and tidy large-capacity warehouse, quality and quantity on time delivery.
4.Give you the best products and services at the lowest price.
5.The company has a number of honors.
6.After-sales service in a timely manner, 7 * 24 hours online, timely reply, timely delivery.
Welcome To Contact Us
Company Name: Anhui Safe Electronics Co.,Ltd
Add: No.1771 Qifeng Road, Shizishan National High Technology Zone, Tongling, Anhui, China
Tel: 0086 0562 2821018
Fax: 0086 0562 2821558
Mobile Phone: 0086-13305620368 (Helen Hu)
Website: tofocapacitor.en.made-in-china.com
The CBB61 AC motor capacitor with a heavy-edge metallized Al/Zn film as the electrode and medium. A flame retardant epoxy resin is then placed in the ABS or PBT cube plastic housing.
The CBB61 series can be divided into fan capacitors, Insert capacitors, lead capacitors and pin capacitors depending on the form of the leads.
Application:
It is widely used in air conditioner fans, electric fans, exhaust fans and other single-phase motors with a relatively low frequency of 50Hz/60Hz AC power supply.
Specifications
| Reference standards | GB/T 3667.1(IEC60252-1) |
| Climatic category | 40/70/21,40/85/21 |
| Class of operation | Class B(10000h) Class C(3000h) |
| Class of safety protection | S0/S3 |
| Voltage range | 250VAC,370VAC,440VAC,450VAC |
| Capacitance range | 1-35uF |
| Capacitance tolerance | ±5%,±10%,±15% |
| Dissipation factor | 20×10-4 (100Hz,20°C) |
| Test voltage terminal to terminal | 2Un for 2 seconds |
| Test voltage terminal to case | (2Un+1000)VAC or2000VAC-50Hz for 60 seconds |
| Insulation Resistance | ≥3000s(100Hz,20°C,1min) |
Dimensions(mm)
| Specifications | 450VAC | 250VAC |
| 1μF | 37×13×23 | 37×13×23 |
| 1.2μF | 37×13×23 | 37×13×23 |
| 1.5μF | 37×14×25 | 37×13×23 |
| 2μF | 37×16×28 | 37×13×23 |
| 2.5μF | 37×18×28 | 37×14×25 |
| 3μF | 47×18×29 | 37×14×25 |
| 3.5μF | 47×18×34 | 37×16×28 |
| 4μF | 47×18×34 | 37×16×28 |
| 4.5μF | 47×22×34 | 37×16×28 |
| 5μF | 47×22×34 | 37×18×28 |
| 5.5μF | 47×22×34 | 37×18×28 |
| 6μF | 47×22×34 | 47×18×29 |
| 6.5μF | 48×26×38 | 47×18×29 |
| 7μF | 48×26×38 | 47×18×29 |
| 8μF | 48×26×38 | 47×18×34 |
| 10μF | 58×26×44 | 47×22×34 |
| 12μF | 58×26×44 | 47×22×34 |
| 15μF | 58×26×44 | 47×22×34 |
| 16μF | 58×26×44 | 48×26×38 |
| 20μF | 58×35×49 | 48×26×38 |
| 25μF | 58×35×49 | 48×25×38 |
| 30μF | negotiable | 58×26×44 |
| 35μF | negotiable | 58×26×44 |
