10025 bracket fan anti-mosquito lamp fan dc fan cooling fan brushless fan
Model | Rated Voltage (V) | Startup Voltage (V) | Current Amp (A) | Speed (RPM) | Noise Level (dB-A) | Weight (g) |
XYJ12B10025L | 12 | 6 | 0.05 | 1500 | 28.9 | 126 |
XYJ12B10025M | 12 | 6 | 0.12 | 2500 | 38.8 | 126 |
XYJ12B10025H | 12 | 6 | 0.33 | 2500 | 44.2 | 126 |
XYJ24B10025L | 24 | 12 | 0.03 | 1500 | 28.9 | 126 |
XYJ24B10025M | 24 | 12 | 0.06 | 2500 | 38.8 | 126 |
XYJ24B10025H | 24 | 12 | 0.18 | 3500 | 44.2 | 126 |
Our advantage:
Spare Parts-Connector:
Difference between ball bearing and sleeve bearing:
ball bearing | sleeve bearing | |
Price | higher | lower |
Brand | NSK from Japan | Made in China |
Advantage | stable performance,low noise, 5-8years lifetime | low cost, 2-3 year lifetime |
Material | stainless | copper sleeve |
Warranty | 3 year | 1 year |
Optional Function :
1.Waterproof Level: IPX5~IP67, fans could be work in wet environment, outdoor or under water with waterproof protection.
2.Wire leading: 2 wires(red wire:positive;black wire:negative)
3 wires(red :positive;black :negative;yellow: PWM)
4 wires(red :positive;black :negative;Yellow :PWM;white:FG)
3.Additional function: auto-restart, temperature control speed, speed detection, stoppage alarm, waterproof etc.
4.We default 220mm wire length without connector, could be customized as your request. we just need the picture of connector and rank of wires for confirm.
Lead Time:
1. Samples:3-7 working days
2. Mass production:10-15 working days
3. Waterproof fan need 1 more week
Packing&Transportation:
Payment:
We accept payment by T/T , Western Union or Paypal .
100% payment for sample orders .
30% deposit and 70% balance before shipment .

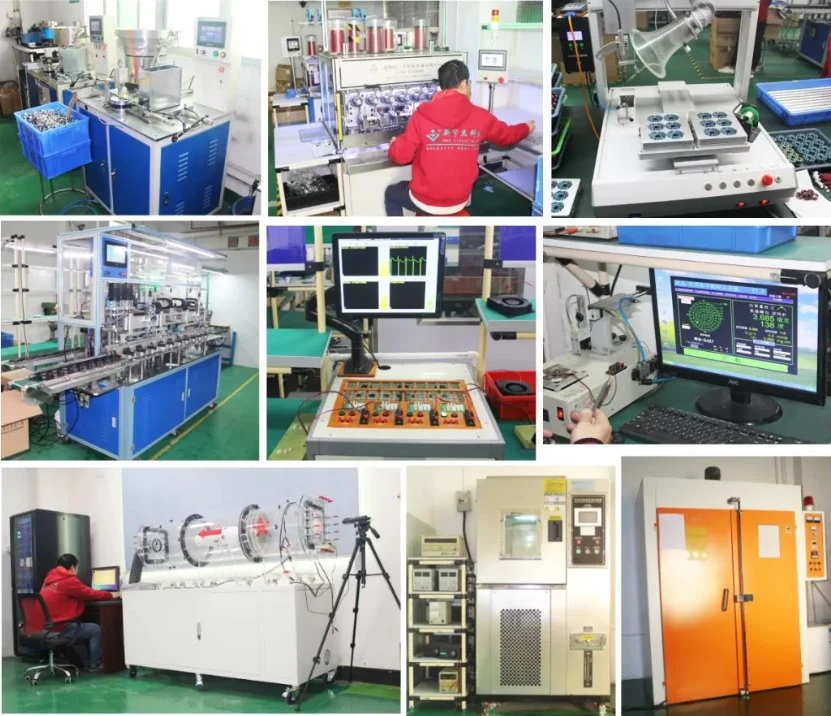

Company Profile:
FAQ
1.What's the difference between the sleeve and ball bearing fan?
The ball bearing brand was NSK bearing imported from Japan.
The warranty for ball bearing fan is 30, 000 hours but sleeve bearing just 10, 000 hours.
Ball bearing has 5-8 years lifetime, sleeve bearing has 2-3 years lifetime.
Ball bearing fan noise level won't change for a long time term, but sleeve bearing fan noise level will grown as time goes on.
Sleeve bearing is cheaper than ball bearing fans.
2. What kind of function can we choose for fan?
Optional function: Auto-restart, Speed detection, Stppage Alarm, Waterproof(IP55-IP68 optional), PWM function, Temperature control etc.
3. How long can your wire length be?
The wire length and terminal could be customized as your request. We just need the picture of connector and rank of wires for confirm. (Default wire length is 200mm)
4. What's your MOQ and delivery date?
MOQ200PCS
Sample lead time: 5 working days
Mass production: 15 working days
Waterproof fans need 1 more week
5. What's your payment terms?
We accept Payment by T/T, Western Union, Paypal, L/C, and we advocate Credit Insurance Payment on Alibaba
100% payment for sample orders, 30% prepayment and Balance 70% before shipment.
6. What kind of transportation can we choose?
Express: DHL, EMS, Fedex, UPS, IATA, TNT, China AIR Express, Iceland express etc.
Sea transportation as you request
7. What's your packaging?
Knife card packing, carton package
normal carton size 43X28X43CM, different model will lead to carton size different.
Guarantee:
3 years warranty for ball bearing fans
2 years warranty for hydraulic bearing fans
1 year warranty for sleeve bearing fans
Sevice:
-OEM service based on MOQ1000pcs;
-100% test before shipping;
-UL material and waterproof material optional;
-The defective rate is less than 5%;
-Provision of engineering services;
-Customized service can be provided.
